Lieu d'origine:
La Chine
Nom de marque:
Lijiang
Certification:
CE
Numéro de modèle:
LJZK 2535
Vidéo

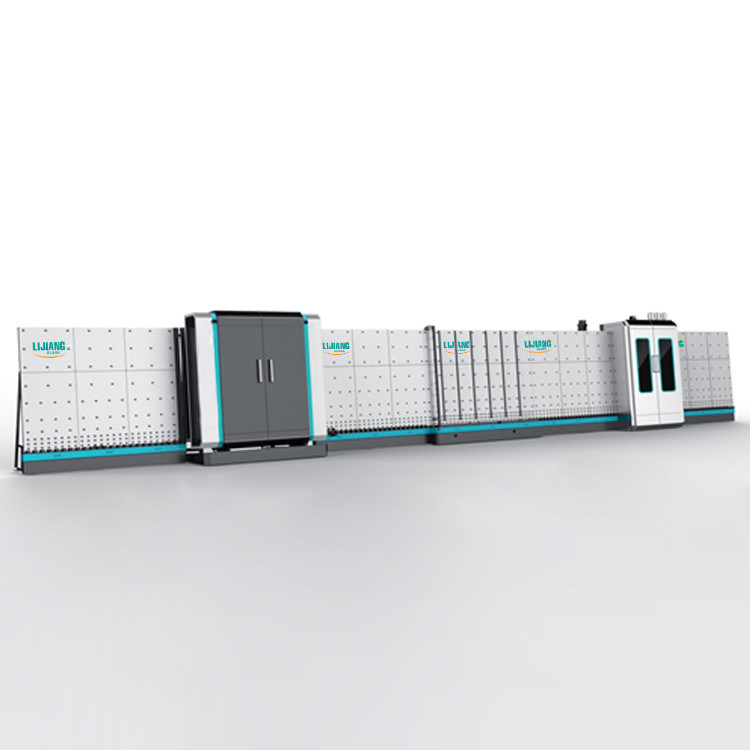

Lijiang Double Glazing Production Line Window Glass Making Machine
The insulated glass machine can complete the following functions: glass cleaning, placement of aluminum frame, normal double glazing, normal 3 glazing, molded glass and second pressing of double glazing.
Insulated glass machinery is a special equipment in the production of aluminum strip insulated glass, which has the advantages of small footprint, high efficiency, reliable performance, and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, famous brands of key components, ensure stable operation and long life;
3, Designed for high quality glass processing, such as tempered glass, Low-E glass, tempered glass and laminated glass;
4, large glass processing glass, various models and customizations available;
5, large output capacity, output 1,000 pcs per working day;
6, Can be used for double layer, triple layer, springboard sheet and abnormally shaped insulating glass;
7, Automatic filling of argon air gas during flat glass assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
