Détails sur le produit:
|
| Nom: | Machine de développement en verre creuse automatique de double vitrage | Alimentation d'énergie: | 380V, 50HZ ou adapté aux besoins du client |
|---|---|---|---|
| Application: | verre de meubles, verre de construction, machine de fabrication de verre creuse, verre de décoration | Pression atmosphérique: | 0.5~0.8Mpa |
| Taille en verre maximale: | 2000*2500mm | Taille en verre minimale: | 300x400mm |
| condition: | nouveau | ||
| Surligner: | machine de développement en verre creuse de 2000×2500mm,Machine de développement en verre de double cavité,machines de traitement en verre de 2000×2500mm |
||

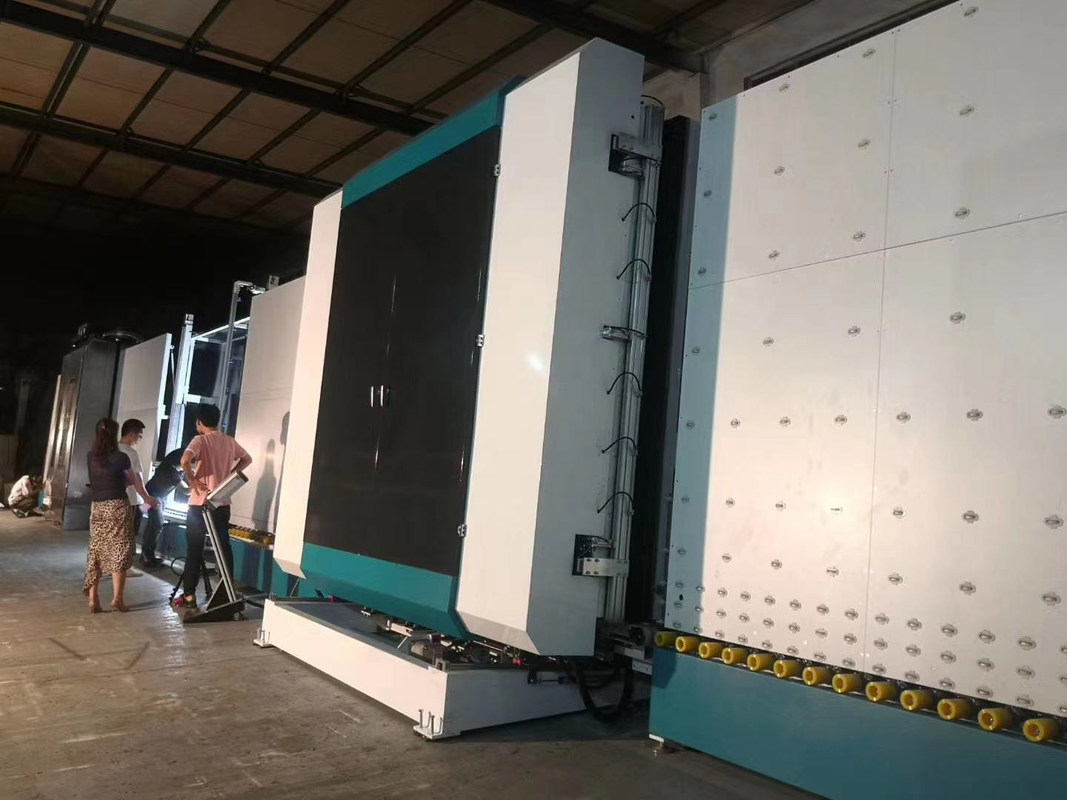

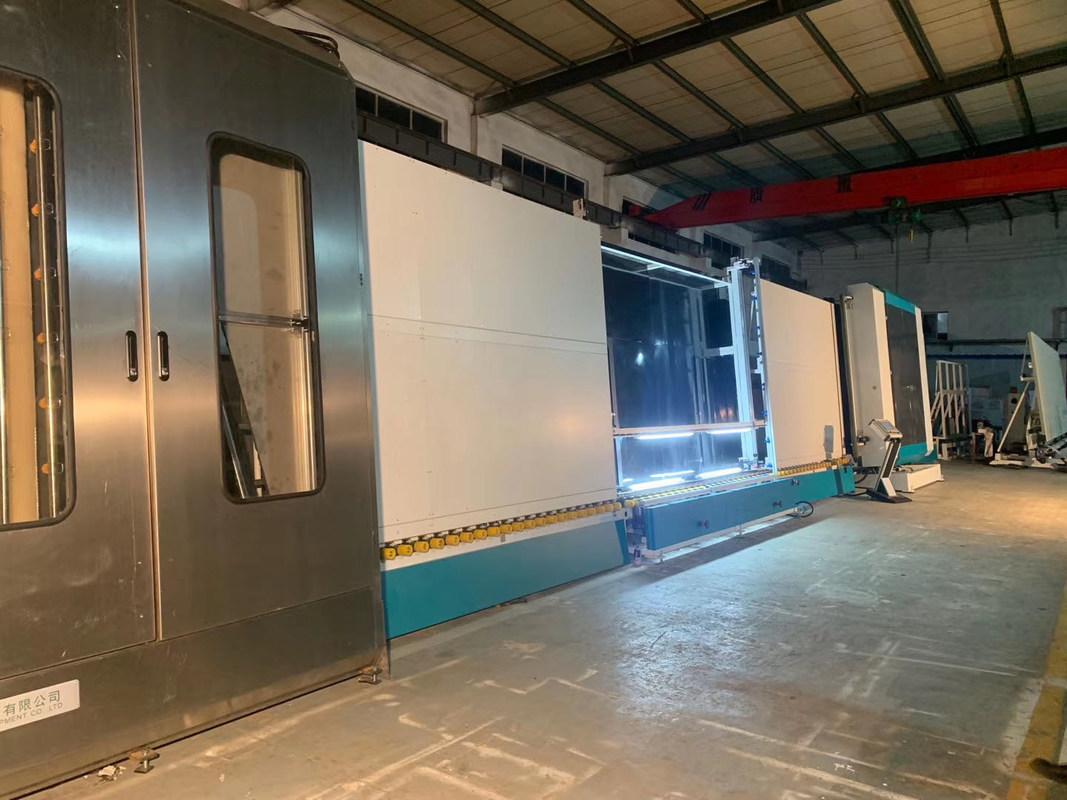

Automatic Double Glazing Hollow Glass Processing Machine
Insulatiing glass machine can perform the following functions: glass cleaning, aluminum frame placement, ordinary double glass, ordinary three glass, shaped glass and double glass second pressure.
The insulating glass machine is a special equipment for the production of aluminum strip insulating glass, which has the advantages of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, famous brand of key components, ensure stable operation and long service life;
3, Designed for high-quality glass processing, such as tempered glass, low-E glass, tempered glass and laminated glass;
4, Large glass processing glass, various models and customization available;
5, Large output capacity, 1,000pcs output per working day;
6, Can be used for double layer, triple layer, stepping sheet and abnormal shaped insulating glass;
7, Automatic filling of argon air gas during the sheet glass assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
