Détails sur le produit:
|
| Nom: | Machine affûteuse en verre | application: | seul verre de polissage |
|---|---|---|---|
| Alimentation d'énergie: | 50 hertz | puissance totale: | trois kilowatts |
| Dimension: | Millimètre 2000*1200*820 | Utilisant la manière: | machine de production de double vitrage |
| Surligner: | machine 3kw affûteuse en verre,Machine affûteuse en verre d'IG,Machine de polonais en verre de bord d'IG |
||

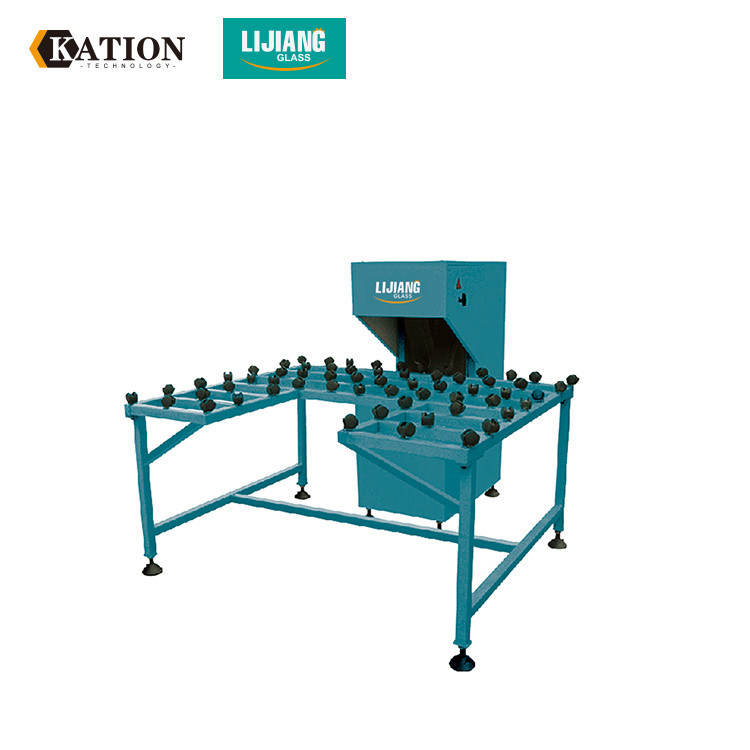

IG Glass Edge Polishing Machine Glass Edge Grinding Machine
1.Overview of IG Glass Edge Polishing Machine
IG Glass Edge Polishing Machine is used to carry out rough grinding and chamfering after the cutting of the original glass sheet. With easy and simple operation, low labor intensity and high production efficiency, it is indispensable for safety production of all kinds of windows and doors.
IG Glass Edge Polishing Machine is suitable for the edge-finishing of the raw glass for insulating glass.
2.Features of IG Glass Edge Polishing Machine
1. IG Glass Edge Polishing Machine is used for polishing single glass, to prevent to hurt workman from sharp glass edge
2. IG Glass Edge Polishing Machine adopts type of ‘x’ to polish the up and down edge at the same time
3. IG Glass Edge Polishing Machine can be Easy operating, simple and flexible
4.IG Glass Edge Polishing Machinee Used for Insulating glass production machine
Technical parameter
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
Related Products
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000*3500mm |
