Détails sur le produit:
|
| Taille de recourbement maximum: | 2000 * 2000 | Taille de recourbement minimum: | 250 * 200 |
|---|---|---|---|
| Alimentation en air: | 0.65Mpa | Nom: | Machine en aluminium en verre isolante d'entretoise d'entretoise chaude de bord |
| Surligner: | machine à cintrer industrielle,machine à cintrer de barre d'entretoise |
||

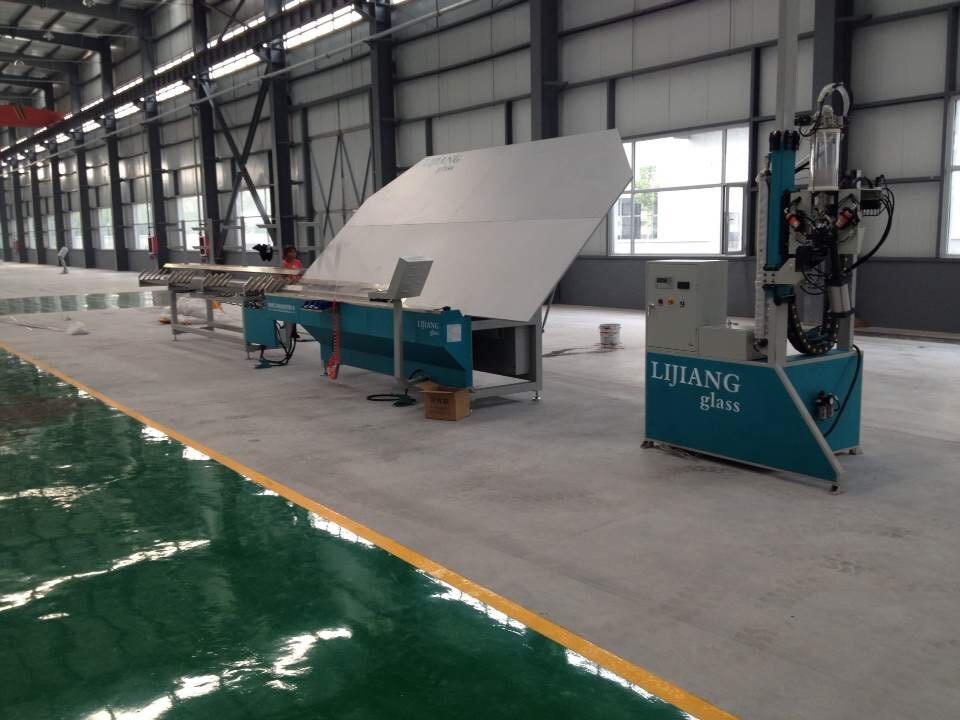

Automatic spacing bender is special equipment for making aluminum insulation glass frames, replacing traditional manufacturing technology. This equipment can produce different polygonal convex aluminum frames with a single aluminum strip simultaneously, thereby strengthening the strength of the aluminum frame, thereby improving the sealing effect of insulating glass.
Equipment details
Siemens PLC control system adopted
There are 4 Siemens servos
We adopt 4 sets of racks that can store spacers of different sizes. Use Siemens servos to replace various racks.
Aluminum spacers are automatically cut and shipped
Continuous curved spacer frame
Automatically avoid connection corners when folding or disconnecting
Instead of snatching the spacer from below, the machine handles the spacer from above, which solves the old-fashioned flipping problem.
Uses industrial computer technology that allows industrial computer workers to draw on the spot and fold the drawn graphics directly.
A dedicated mechanical hand device is used to fold the large spacing frame
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Founded in 2009, Kation-Tech specializes in R&D, production and sale of insulating glass machines and related auxiliary equipment for the deep glass processing industry and the door and window construction industry. The basis for professional processing of insulating glass machines, aluminum-plastic door and window machines and related auxiliary materials, etc. Until 2019, we were exporting glass machinery and materials to America, South America, Europe, the Middle East, India, etc., in nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and strived together to build an international brand famous in the world. Kation-Tech, with know-how, profession and honesty, wins the future with you together!
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
