Détails sur le produit:
|
| Nom: | paramètres techniques CP-2500A (12 m/min) de machine à laver en verre | Largeur en verre maximum: | 2500mm (maximum efficace : 2650mm) |
|---|---|---|---|
| Spécifications en verre minimum: | 400mm×400mm (limité pour choisir la rangée des côtés gauches et droits) | Épaisseur en verre: | 3mm-25mm (affichage numérique) |
| Gamme de vitesse: | épaisseur en verre à moins de 3-25mm Vmax=1-12m/min | Motivation essentielle, méthode de règlement de vitesse de brosse: | Contrôle de fréquence |
| Surligner: | machine en verre de lavage de 2500mm,Machine en verre de lavage d'accumulation,machine à laver en verre plate de 2500mm |
||

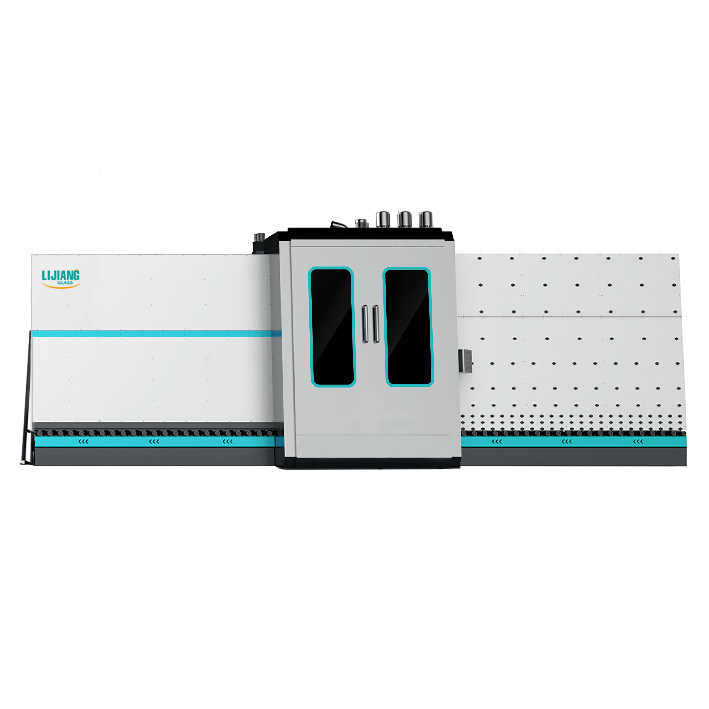

glass washing machine technical parameters CP-2500A remove dirt, dust, remove all kinds of grease, remove accumulation
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces
of ordinary plate glass and high quality low-e glass,it is composed of incoming segment,
cleaning air-drying segment and outgoing segment.
high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical
paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean
and maintain；

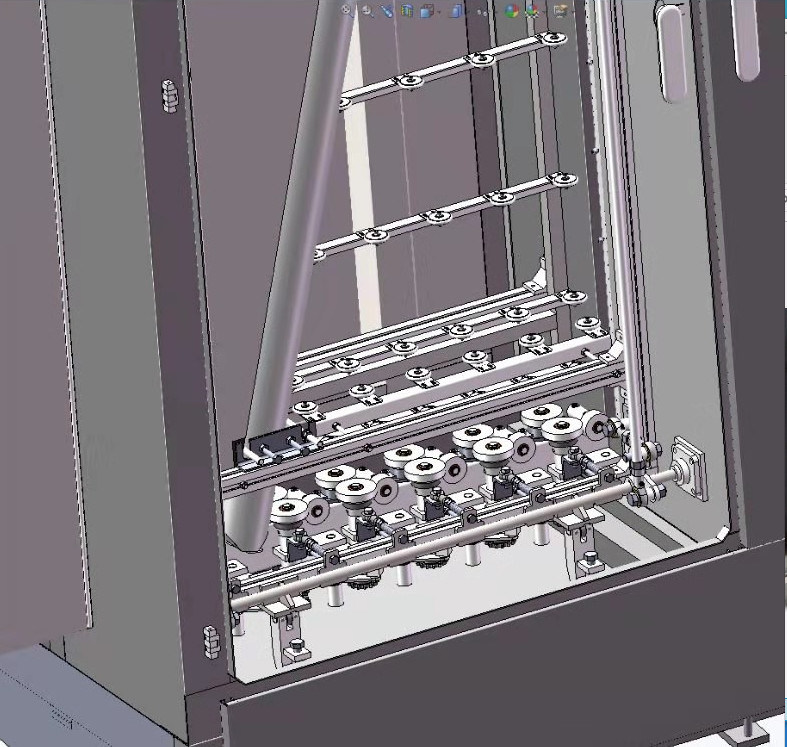

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass,
ordinary coated glass and sunshine coated glass can be washed without damaging the
coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind,
good air drying effect, with heating system(with temperature control device, optional opening
and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air
drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter
screen on the side for easy inspection and cleaning；

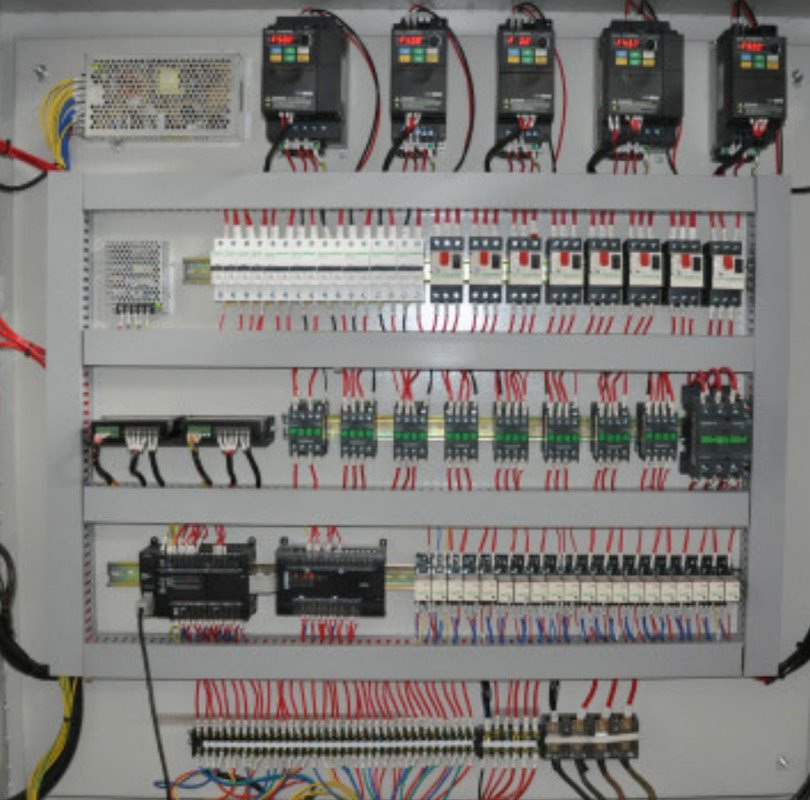

9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush
roller in the washing section is driven by independent belts of the upper and lower motors
respectively, the frequency conversion adjustment speed is stable, the service life is long,
realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate,
easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change, check,
so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and
maintain, and can be connected to all manufacturers of edge grinding machines without gap.
(purchase separately if necessary)
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
