Détails sur le produit:
|
Nom: | La production à la machine en verre de nettoyage de machine de développement de double-couche effica | Alimentation d'énergie: | 380V, 50HZ ou adapté aux besoins du client |
---|---|---|---|
puissance totale: | 40 KILOWATTS | Vitesse de lavage: | 2-10m/min |
Utilisation: | Pour le verre isolant de processus | ||
Surligner: | ligne en verre isolante,machines de développement en verre |

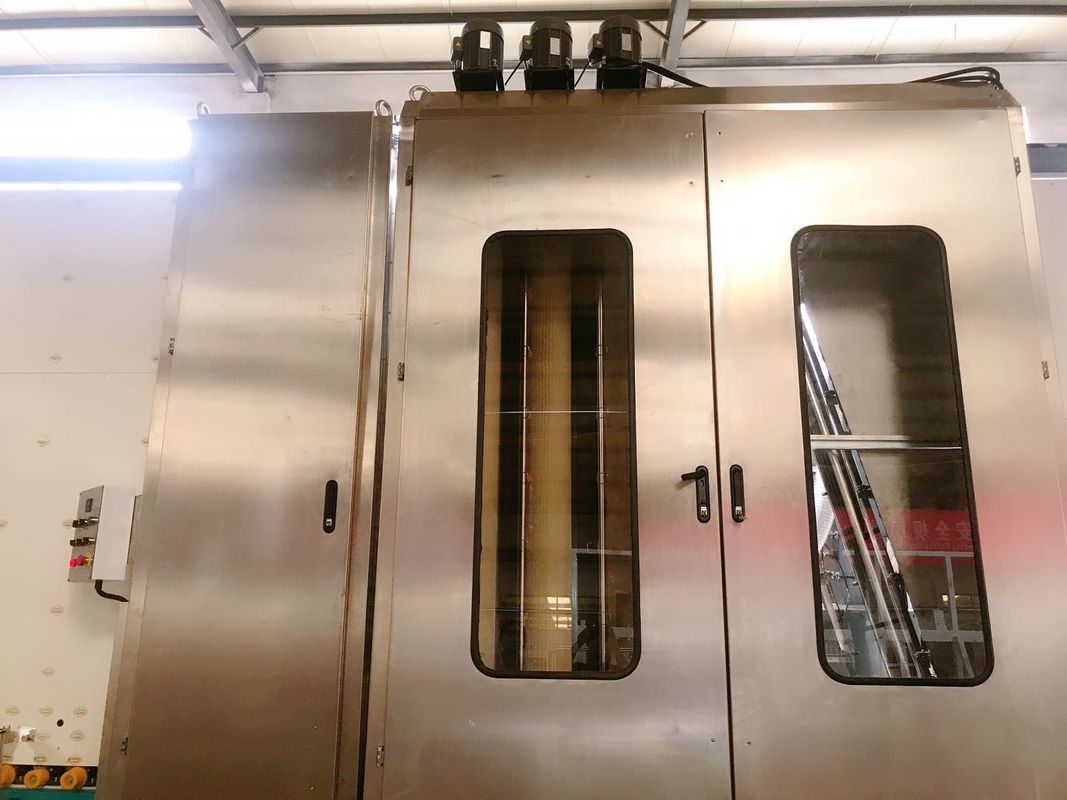

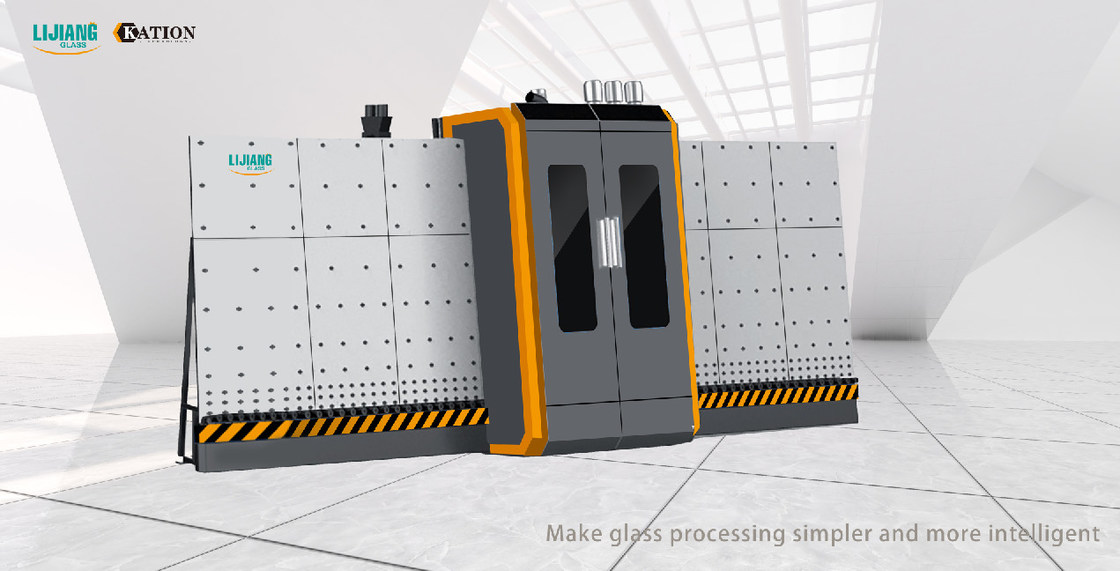

Efficient Double-Layer Glass Processing Machine Cleaning And Drying Machine Production Line
The insulated glass machine can perform the following functions: glass cleaning, aluminum frame placement, normal double glazing, normal three glass, molded glass and other double glazing.
Insulated glass machinery is a special equipment for the production of aluminum strip insulated glass, which has the advantages of small footprint, high efficiency, reliable performance and practical maintenance.

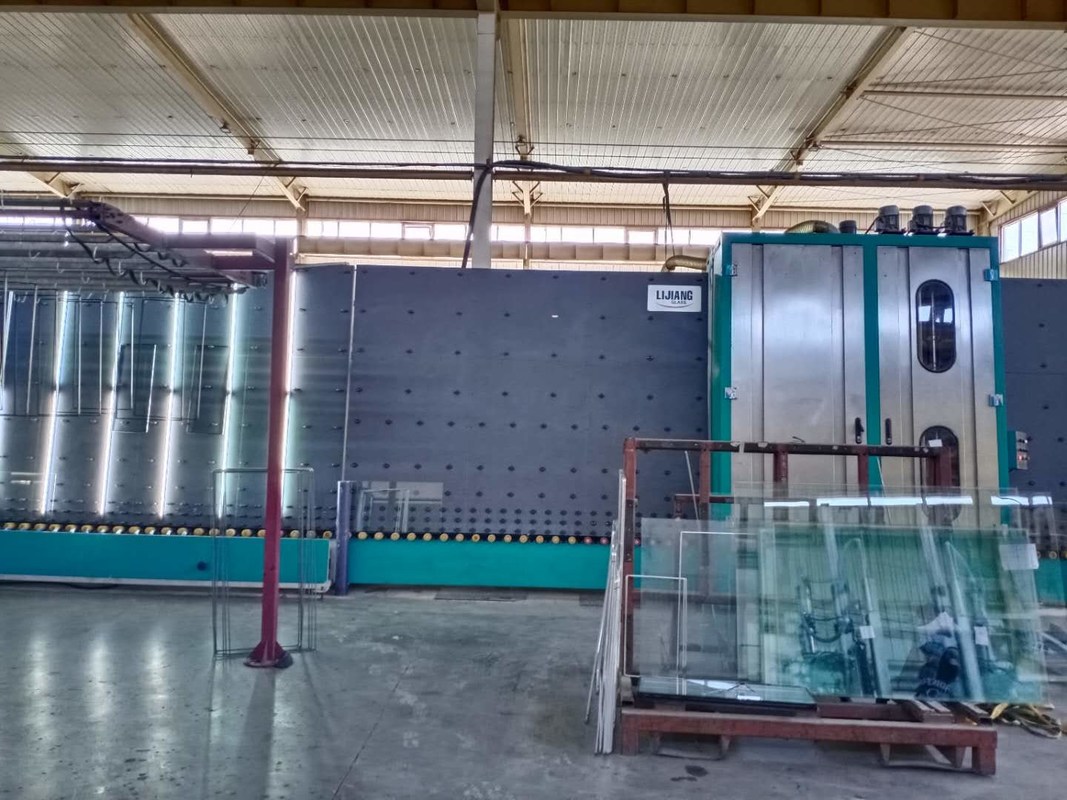

glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, simple and intelligent management.
2, the world-famous brand of major components guarantees stable operation and long service life.
3, Designed for high quality glass processing such as reflective glass, low E glass, tempered glass and laminated glass.
4, large glass processed glass, different models and customization available.
5, large output capacity, 1,000 pieces in one business day.
6, Suitable for double layer, triple layer, stepped sheet, abnormal shape insulating glass.
7, automatic filling of air with argon during the glass sheet assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |

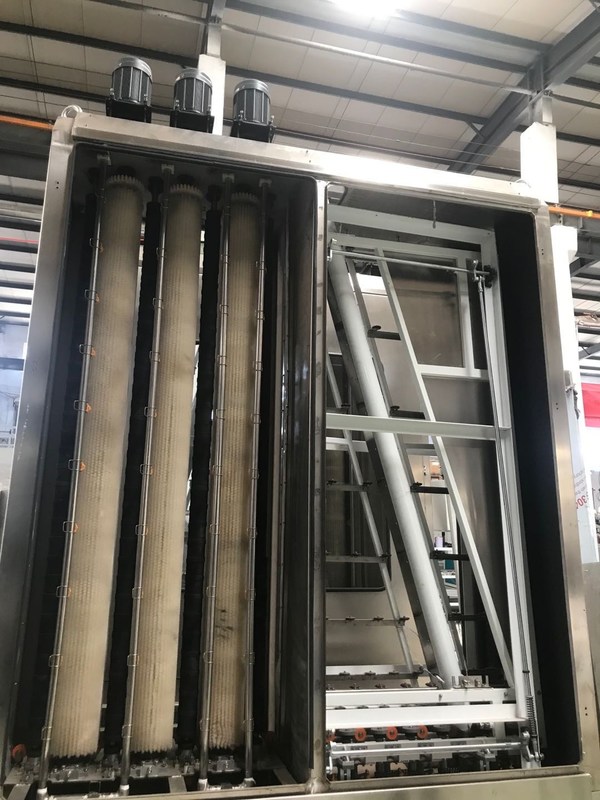

Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Power Supply | 380V,50HZ or customized |
Total Power | 40 KW |
Washing Speed | 2-10m/min |
Max. working speed | 45m/min |
Min.Glass size | 450*280mm |
Max. Glass size |
2500*3200 2500*4500(second pressing) |
Washing glass thickness | 3-15mm |
Max. Insulating glass thickness | 50mm |
Weight | 8000kg |
Dimension (L*W*H) | 23600*3500*3700mm |
Company Information
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
